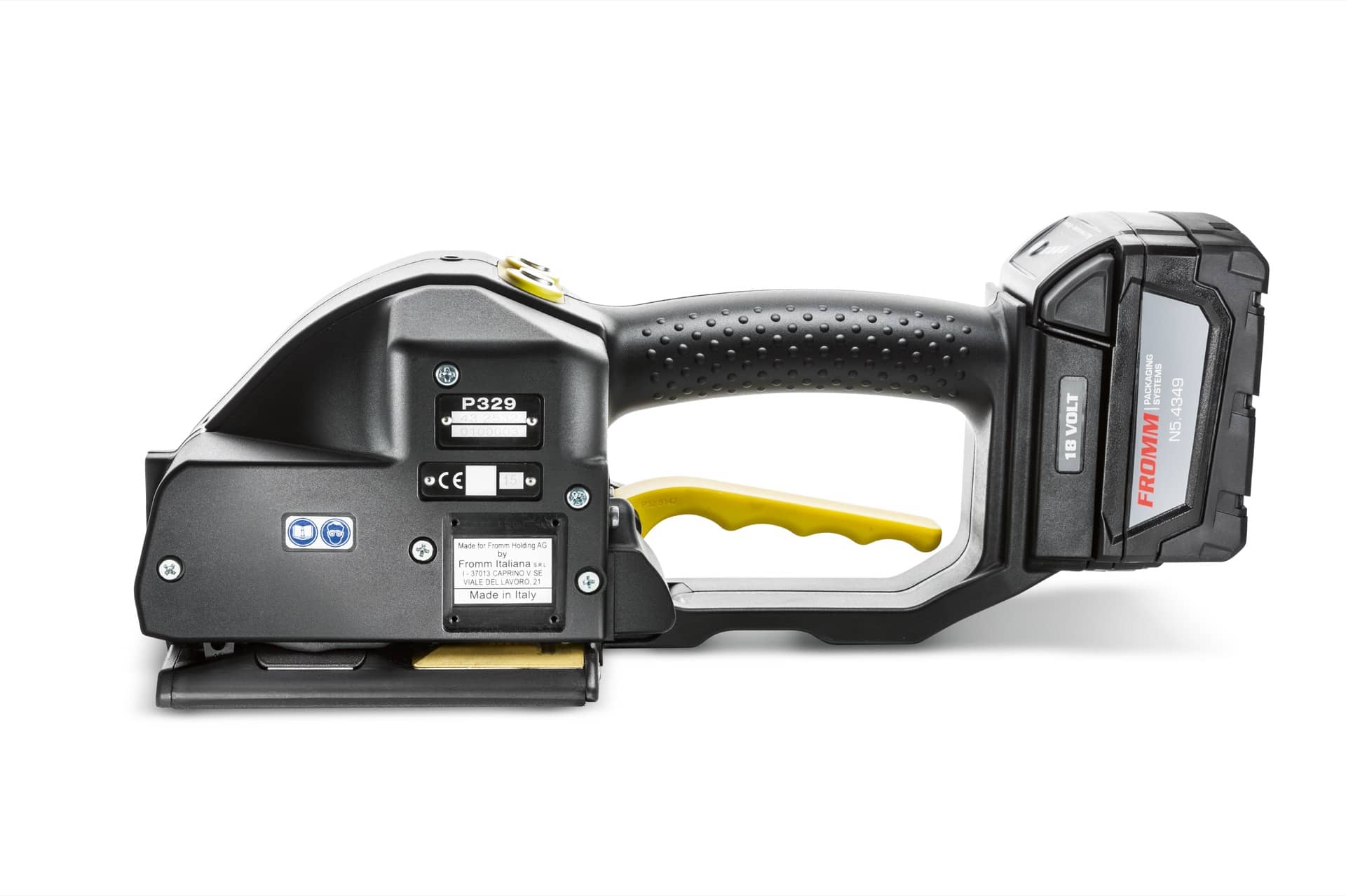

P329 Battery Powered, Plastic Strapping Tool KIT for HD Applications
Strap Widths from 16 (⅝”) up to 19 mm (¾“)
and a Tension Force up to 4.000 N/900 lbs.
Battery Powered Plastic Strapping Tool for HD applications
Our range of battery powered strapping equipment provides the right tool and strapping for every application. Plastic strapping is available in widths from 9 mm to 32 mm. The new battery strapping tools P328, P329 and P331 are available in two different versions: with one button or two buttons. Tools with one button are designed for automatic use. The new tool models are also equipped with brushless motors. This ensures a longer lifespan of the tools and reduced maintenance costs. The Battery powered P329 Strapping Tool Kit comes with 2 batteries and a standard battery charger.
Advantages of P329 Battery Strapping Tool :
- High tension force up to 4000N / 900 lbs
- Tension force and sealing time adjustable with simple knobs
- Tool in both semi-automatic and automatic (single button) version available for efficient operation
- Brushless motor for less maintenance and improved life time
- Improved plates and guides – less effort to remove the tool from the strap
- No tension rocker – easier to remove tool from small package surfaces
- Motor temperature monitoring to protect motor from overheating
- Cycle counter included (special reader required)
- Battery well protected
- Battery charge indicator included
- Simple one-handed operation
- Tool is fully covered for finger protection
- Optional motor cooling fan available to reduce overheating risk
Characteristics
| Strapping qualities | Polyester (PET) and Polypropylene (PP) plain and embossed |
| Strapping dimensions | 16.0 – 19.0 mm / ⅝ – ¾“ |
| thicknesses 0.65 – 1.35 mm / .026 – .053“ | |
| Weight | 4.3 kg / 9.6 lbs (including 4.0 Ah battery) |
| Tool size | L351 x W134 x H143 mm / 13.8 x 5.3 x 5.6“ |
| Type of seal | Sealless, friction weld sealing |
| Average seal strength | approx. 75% (depending on strap quality) |
| Tension force | 500 – 4.000 N / 112 – 900 lbs (adjustable in steps of 5%) |
| Tension speed | 49 – 79 mm/s / 1.6 – 3.1 inch/s |
| Power Supply | Battery 18 VDC / 4.0 Ah or 9.0 Ah Li-Ion |
