P380

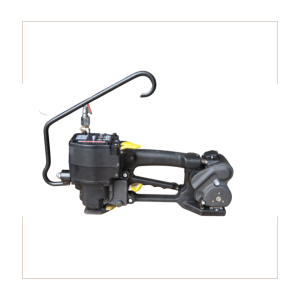

Innovative High Tension Friction Weld Plastic Strapping Tool for Round and Small Surface Applications
This tool provides a unique solution for converting steel strapping into PET strapping, specifically designed for round and small applications. It operates without seals, and the benefits of using PET strapping lead to significant cost savings.
Advantages
- Unique high tension friction weld plastic strapping tool for round and small surface applications – first tool in its class
- Robust design guarantees high reliability
- Applicable for surfaces of min. 80 mm (3.1”) and small diameters of min. 240 mm (9.4”)
- Combination tool outperforms separate tensioner and sealer operation
- Higher work efficiency and performance
- Friction weld seal is superior to seal joints with a seal
- Opportunity to convert steel strapping to PET strapping for round applications – no seals and the advantages of PET strapping generate important savings
Technical Sheet
| Characteristics | |
|---|---|
| Strapping Qualities | Polyester (PET) and Polypropylene (PP) |
| Strapping Dimensions | width 13 – 19.0 mm / thickness 0.40 – 1.35 mm |
| Weight incl. 4.0 Ah battery | 6.8 kg / 15 lbs |
| Tool size with 4.0 Ah battery | L390 x W135 x H305 mm / 15.4″ x 5.3″ x 12.0″ |
| Type of seal | Friction weld sealing |
| Average seal strength | up to 75% (dependent on the strap quality) |
| Tension force | 600 – 2000 N, 135 – 450 lbs (adjustable) |
| Tension speed | 120 – 260 mm/s / 4.7 – 10.2 inch/s |
| Max. air pressure | 6.0 bar / 87 psi |
| Min. package size | Flat packages: 80 mm/3.1″ |
Info
Strap qualities : Polyester (PET) and Polypropylene (PP)
Strap dimensions : 13 – 19.0 x 0.40 – 1.35
1/2 – 3/4″ x .016 – .053″
Strap tension : 600 – 2000 N, 135 – 450 lbs
Sealing type : Friction weld sealing
Max. air pressure: 6.0 bar / 87 psi
Weight: 6.8 kg / 15 lbs
